YU-E20 Vocal Wireless Microphone System
- Description
- Attributes
- Download
1. Supercardioid dynamic microphone capsule, capture your voice in the most natural way.
2. Built-in PA amplification module, Effective transmission distance of over 300 feet.
3. Add signal shielding module, anti-interference ability increased by 13%.
4. Automatic frequency sweep to create the most reliable connection with the least time and effort.
5. Sound style comparison, Sennheiser G4 series.
6. Suitable for people, singers, DJs.

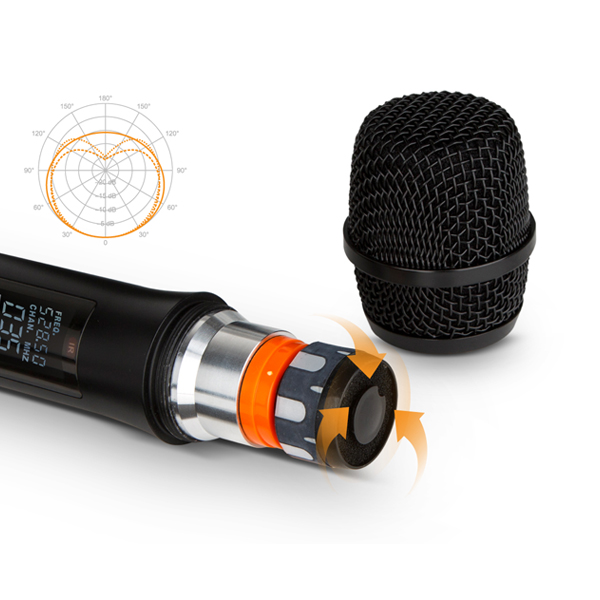

Vocal Pickup Head
The YU-E20 vocal wireless microphone adopts a customized version of the vocal pickup head, which has a large audio dynamic input range and can retain every detail without setting thesensitivity.

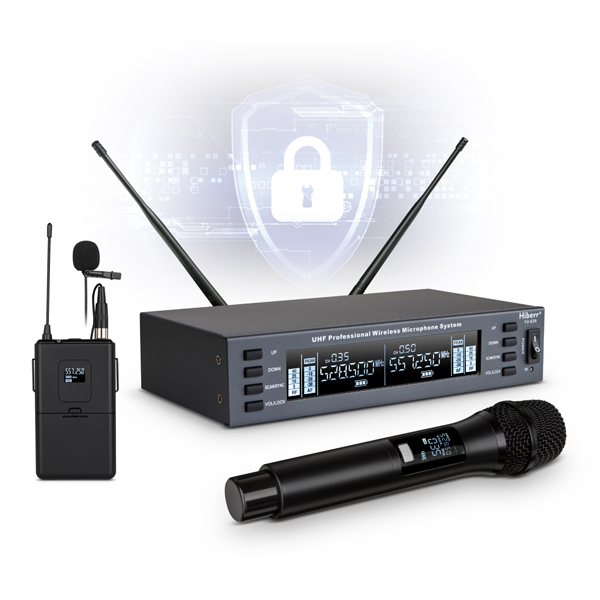

AES 256 Encryption
Built-in AES 256 encryption module, which can greatly improve the security of signal transmission.

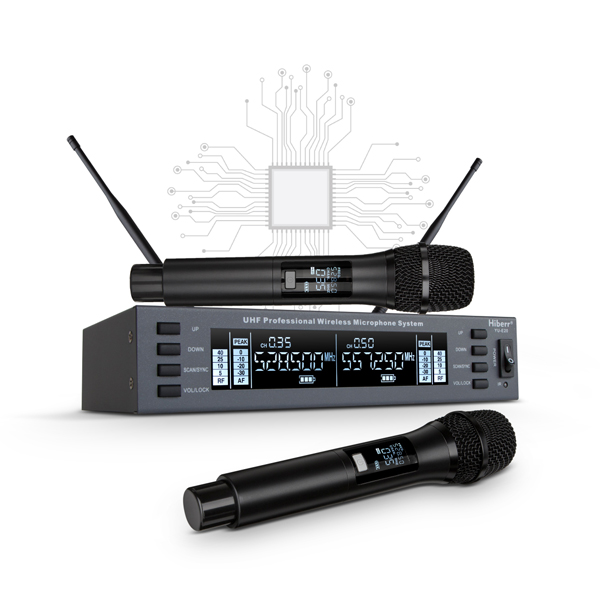

Support 240 Channels
With up to 60 MHz tuning bandwidth and supporting up to 240 channels, the YU-E20 wireless microphone can be easily applied to various RF complex environments.
Automatic Frequency Sweep
Through the one-key scan frequency function, you can quickly output the best channel of the signal, which greatly improves the use efficiency.

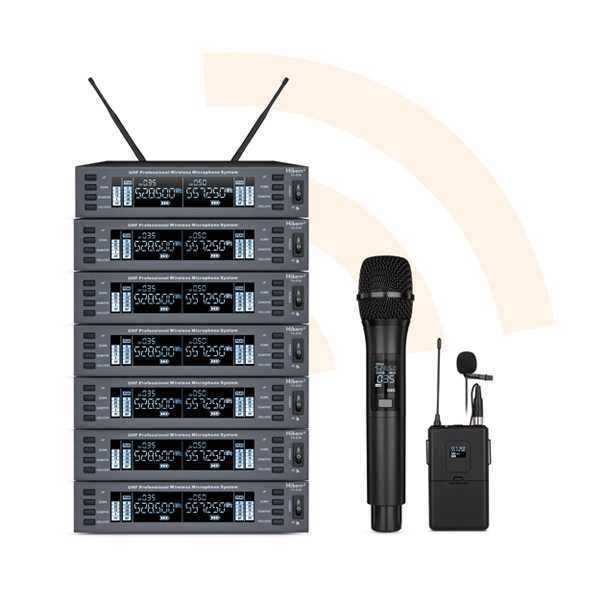

UHF analog signal transmission
The YU-E20 wireless microphone system uses UHF analog signal transmission, with very little delay, and can be compatible with multiple sets in the same place.
| Receiver | |
|---|---|
| Frequency range | 450 - 970 MHz |
| Number of adjustable channels | 120 * 2 |
| Frequency stability | 0.002PPM |
| Receive sensitivity | -105dB |
| Audio frequency response | 60Hz- 18KHz |
| Harmonic distortion | <0.5% |
| Signal-to-noise ratio | >105dB |
| Dynamic range | 105dB |
| Maximum frequency deviation | ±48KHz |
| Spurious suppression | ≥75dB |
| Audio output | balanced output and unbalanced output |
| Power supply | 12-18V DC/1000mA |
| Handheld Transmitter | |
| Frequency range | 450 - 970 MHz |
| Maximum number of channels | 120 * 2 |
| Output power | 5mW / 30mW |
| Secondary wave suppression | >-70dBc |
| Bandwidth | 60MHz |
| Distortion | <0.5% |
| Maximum modulation depth | ±48kHZ |
| Signal-to-noise ratio | >105dB |
| Frequency response | 60-15KHZ |
| Input voltage range | mic 1V max |
| Power supply | 2 X1.5V(AA) |
| Battery life | 10h |
| Bodypack Transmitter | |
| Frequency range | 450 - 970 MHz |
| Maximum number of channels | 240 |
| Output power | 30mW |
| Secondary wave suppression | >-70dBc |
| Bandwidth | 60MHz |
| Maximum modulation depth | ±48kHZ |
| Frequency response | 60-18KHZ |
| Signal-to-noise ratio | >105dB |
| Distortion | <0.5% |
| Input voltage range | 0.8V max |
| Power supply | 2 X1.5V(AA) |
| Battery life | 10h |
