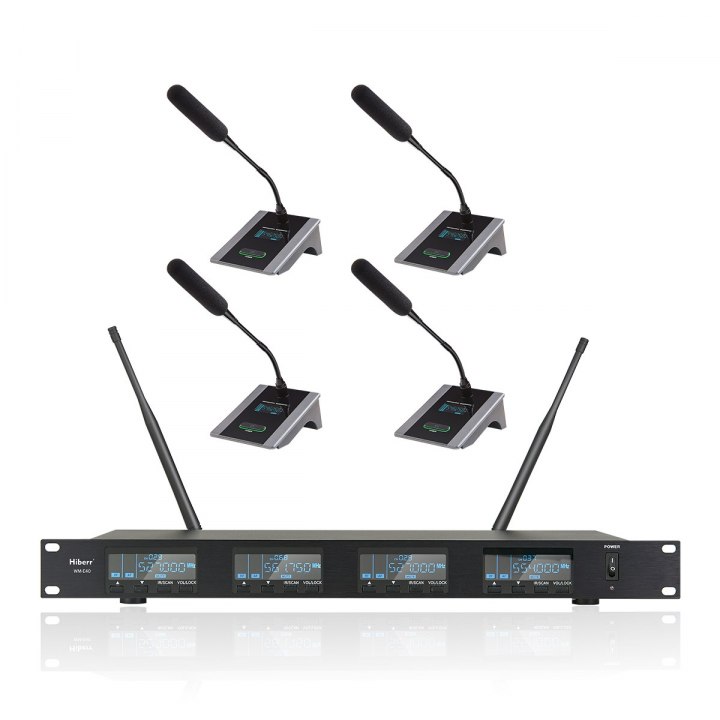

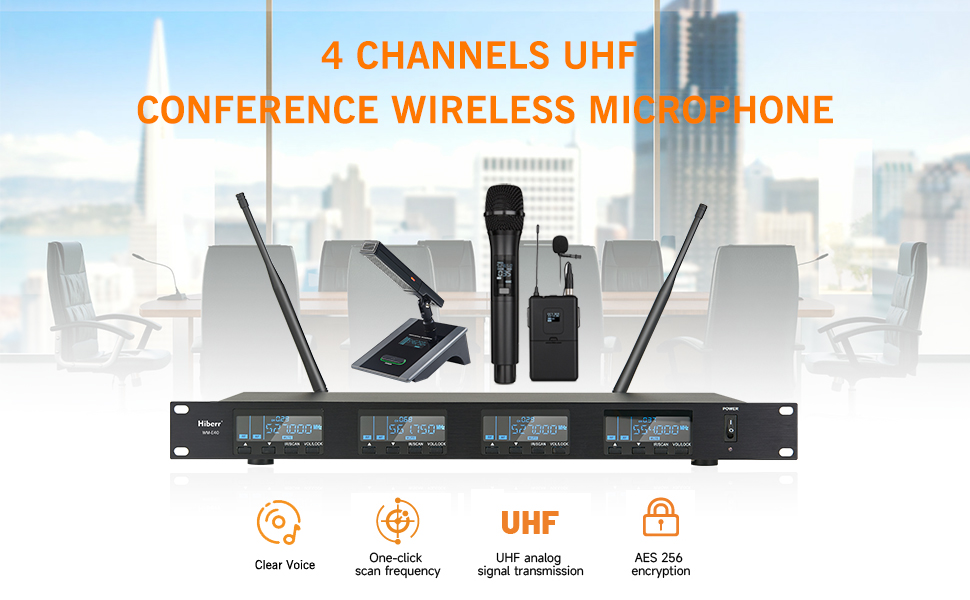

4 Channels UHF Conference Wireless Microphone
WM-E40
1. Conference room dedicated wireless mic.
2. UHF signal AES 256 encrypted processing.
3. Automatic identification of available channels.
- Description
- Attributes
1. Conference room dedicated microphone, clear sound.
2. AES 256 encrypted signal processing, Ensure signal security.
3. Automatic frequency sweep to create the most reliable connection with the least time and effort.
4. UHF analog signal transmission, very little delay and strong compatibility.
Conference Pickup Head
Adapt to a variety of conference-specific pickups, with clear sound and high sensitivity.

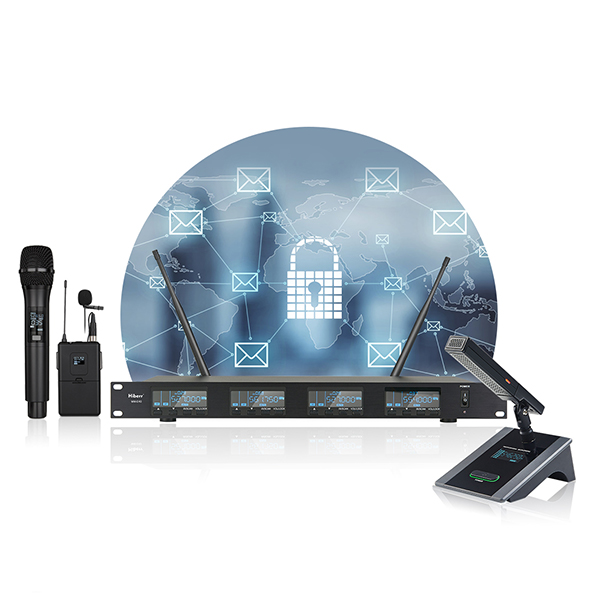

AES 256 Encryption
Built-in AES 256 encryption module, which can greatly improve the security of signal transmission.

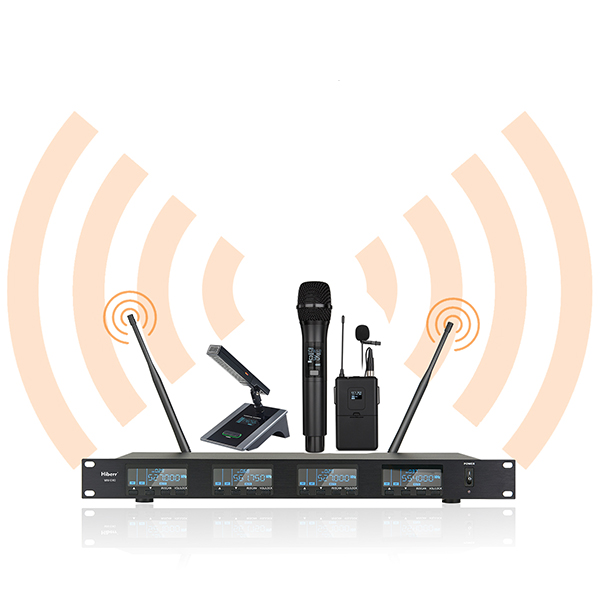

UHF analog signal transmission
Using UHF analog signal transmission, less delay, good anti-interference effect.

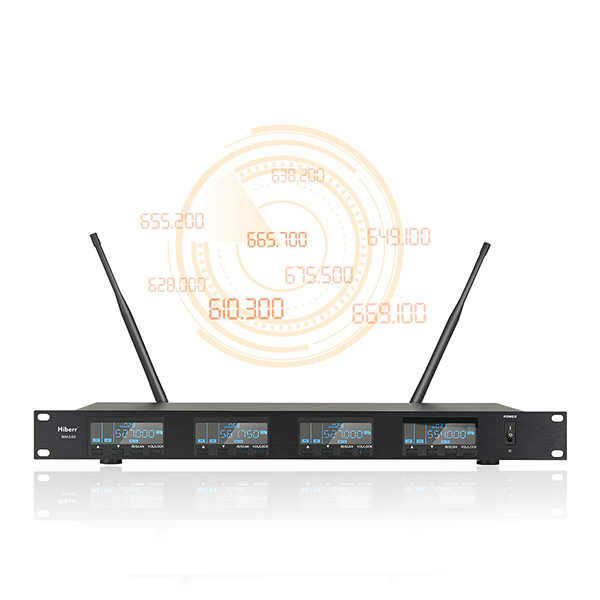

Automatic Frequency Sweep
Through the one-key scan frequency function, you can quickly output the best channel of the signal, easy to use.
| Receiver | |
|---|---|
| Frequency range | 450 - 970 MHz |
| Number of adjustable channels | 120 * 2 |
| Frequency stability | 0.002PPM |
| Receive sensitivity | -105dB |
| Audio frequency response | 60Hz- 18KHz |
| Harmonic distortion | <0.5% |
| Signal-to-noise ratio | >105dB |
| Dynamic range | 105dB |
| Maximum frequency deviation | ±48KHz |
| Spurious suppression | ≥75dB |
| Audio output | balanced output and unbalanced output |
| Power supply | 12-18V DC/1000mA |
| Handheld Transmitter | |
| Frequency range | 450 - 970 MHz |
| Maximum number of channels | 120 * 2 |
| Output power | 5mW / 30mW |
| Secondary wave suppression | >-70dBc |
| Bandwidth | 60MHz |
| Distortion | <0.5% |
| Maximum modulation depth | ±48kHZ |
| Signal-to-noise ratio | >105dB |
| Frequency response | 60-15KHZ |
| Input voltage range | mic 1V max |
| Power supply | 2 X1.5V(AA) |
| Battery life | 10h |
| Bodypack Transmitter | |
| Frequency range | 450 - 970 MHz |
| Maximum number of channels | 240 |
| Output power | 30mW |
| Secondary wave suppression | >-70dBc |
| Bandwidth | 60MHz |
| Maximum modulation depth | ±48kHZ |
| Frequency response | 60-18KHZ |
| Signal-to-noise ratio | >105dB |
| Distortion | <0.5% |
| Input voltage range | 0.8V max |
| Power supply | 2 X1.5V(AA) |
| Battery life | 10h |
